IN-651 Load Cell 2kg C3 C6 High Precision Aluminium Weight force sensor IP66 for electronic balance 1.2+-10%mV/V

Product Categories
Innovation Electronic Co.,Ltd
Contact Now

IN-651 Load Cell 2kg C3 C6 High Precision Aluminium Weight force sensor IP66 for electronic balance 1.2+-10%mV/V

Brand Name : inntronic

Model Number : IN-651

Place of Origin : China

MOQ : 1pc

Payment Terms : L/C

Delivery Time : 15-30 days

Price : Negotiable

Certification : CE

Pattern : Single Point Load Cell

capacity : 500/1000/2000g

Output : 2mv/v

Material : Aluminum

application : electronic balances

interchangeable brand : HBM

IP protection standard : IP66

accuracy grade : C3

cable length : 0.35m

size : 5.12*12*0.47

Contact Now

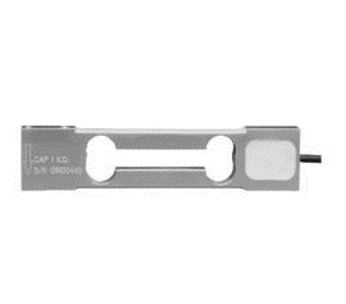

IN-651 0.5 to 2kg Single Point Load Cell for electronic balances

High Precision C3 Single Point Load Cell , IP66 Aluminium Load Cell With 0.35m Cable for electronic balances




Special features:
  •  Aluminum
  •  Creep precision up to 0.005%
  •  accuracy grade:C3
  •  Sensitivity:1.2+-10%mv/v
  •  Zero balance:0.02mv/v






Rated capacity (Emax) g 500/1000/2000
Huazhun Grade   A B
Sensitivity mV/V 1.2+-10%
Zero balance mV/V 0.02
Creep over 30min % 0.008 0.012
Temperature effect on zero %/ 0.0040
Temperature effect on output %/ 0.0012
Hysteresis % 0.01 0.012
Linearity deviation % 0.01 0.012
Repeatability % 0.01 0.012
Nominal temperature range IN-651 Load Cell 2kg C3 C6 High Precision Aluminium Weight force sensor IP66 for electronic balance 1.2+-10%mV/V -10 to +40
Service temperature range IN-651 Load Cell 2kg C3 C6 High Precision Aluminium Weight force sensor IP66 for electronic balance 1.2+-10%mV/V -30 to +70
Limit load % of R.C. 200
Break load % of R.C. 300
Nominal excitation V 5 ~12
Max. excitation V 15
Input impedance IN-651 Load Cell 2kg C3 C6 High Precision Aluminium Weight force sensor IP66 for electronic balance 1.2+-10%mV/V 405 +-10
Output impedance IN-651 Load Cell 2kg C3 C6 High Precision Aluminium Weight force sensor IP66 for electronic balance 1.2+-10%mV/V 350 +-3
Insulation resistance M >2000
Cable length M 0.35
Cable type   4 conductors, Braid Shielded, Black PVC Jacket
Color code   +Exc-Red, +Sig-Grn, -Exc-Blk, -Sig- Wht
Construction   Aluminum
Protection class to IEC529

IP 66







IN-651 Load Cell 2kg C3 C6 High Precision Aluminium Weight force sensor IP66 for electronic balance 1.2+-10%mV/V

IN-651 Load Cell 2kg C3 C6 High Precision Aluminium Weight force sensor IP66 for electronic balance 1.2+-10%mV/V
