Weight force sensor IN-SSP01 1000kg stainless steel single point load cell IP68 for food check weigher 2mv/v C3

Name: Weight force sensor INSSP01 1000kg stainless steel single point load cell IP68 for food check weigher 2mvv C3
Brand: inntronic
Price: 1 USD

Buy cheap Weight force sensor IN-SSP01 1000kg stainless steel single point load cell IP68 for food check weigher 2mv/v C3 product

Brand Name : inntronic

Model Number : IN-SSP01

Place of Origin : China

MOQ : 1pc

Payment Terms : L/C

Delivery Time : 15-30 days

Price : Negotiable

type : stainless steel single point load cell

Capacity : 100kg, 250, 300, 500, 800, 1000 kg

output : 2mv/v

Material : stainless steel 17-4PH

Application : Food check weigher, platform scale

interchangeable brand : HBM load cell, ricelake load cell

IP protection standard : IP68

accuracy grade : C3

cable length : 3m

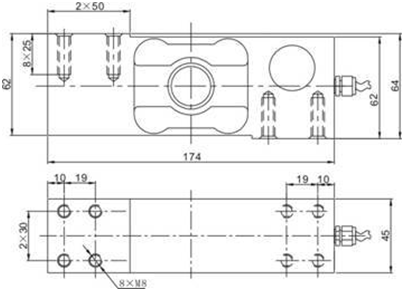

size : 174*45*62

Contact Now

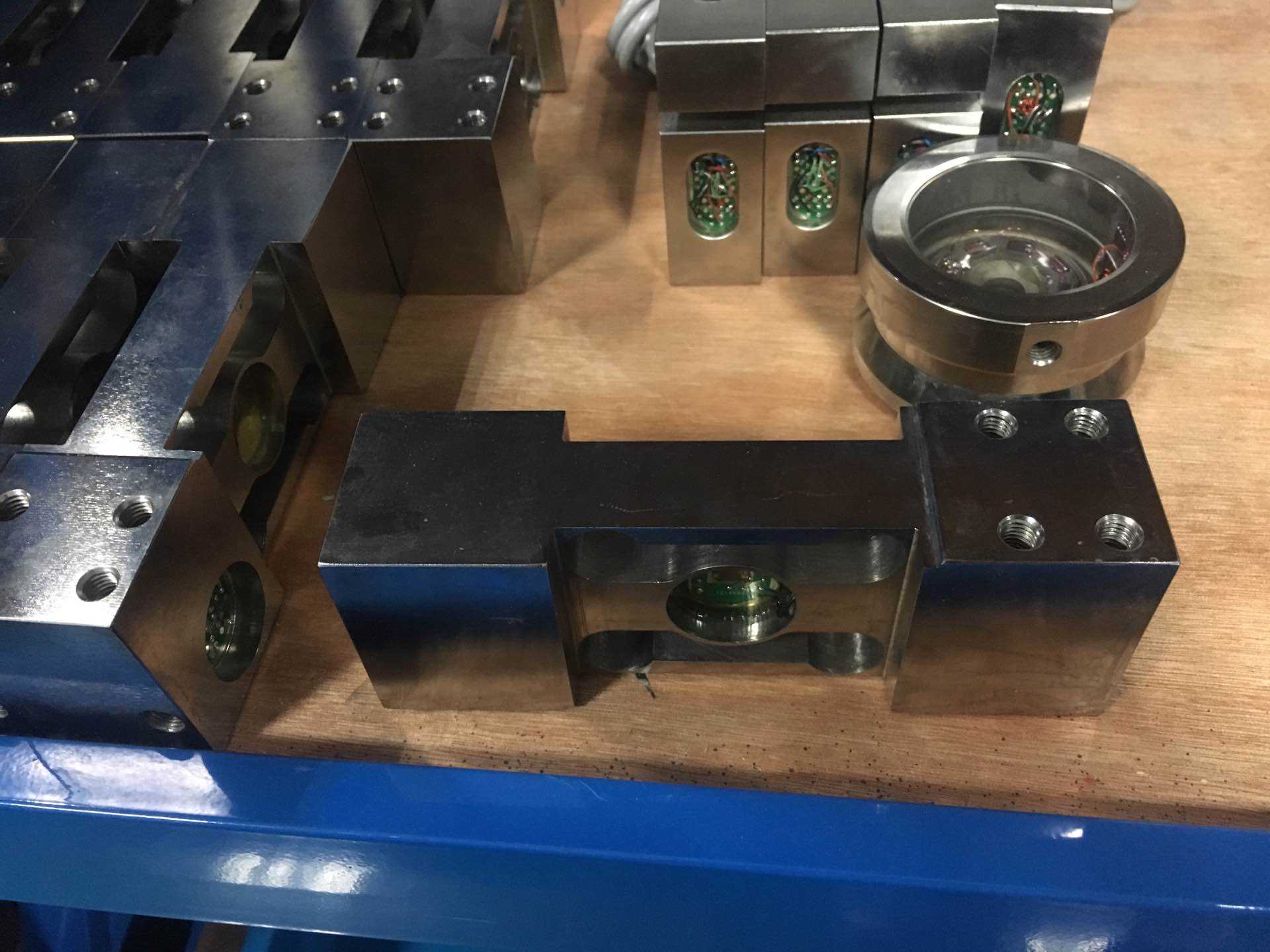

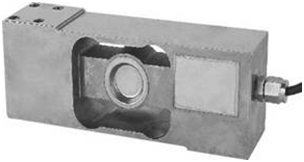

IN-SSP01 Stainless steel single point load cell

Good quality with competitive price

Advantages:

High precision, high motion action, big capacity,small structure.
made by stainless steel 17-4PH
IP68
Application: Food check weigher, platform scale, and other motionweighing system

Emax[kg]	1000,1500	2000,2500
	M10	M12

	Unit	Parameter
Accuracy class		0.03,0.05
Maximum capacity (Emax)	kg	100kg, 250, 300, 500, 800, 1000
Sensitivity (Cn) / Zero balance	mV/V	2±0.2/0 ± 0.1
Temperature effect on zero balance (TKO)	% of Cn/10K	± 0.0175
Temperature effect on sensitivity (TKc)	% of Cn/10K	± 0.0175
Temperature effect on sensitivity (TKc)	% of Cn/10K	± 0.0175
Hysteresis error (dhy)		± 0.02
Non-linearity(dlin)	% of Cn	± 0.0270

Creep(dcr) over 30 min.	% of Cn	± 0.0250
Eccentric error		± 0.0233
Input (RLC) &Output resistance (Ro)		400±20 & 352 ±3
Input (RLC) &Output resistance (Ro)		400±20 & 352 ±3
Nominal range of excitation voltage (Bu)		5-15VDC
Insulation resistance (Ris) at50Vdc		> 5000
Service temperature range (Btu)		-20...+50
Safe load limit (EL) & Breaking load(Ed)	% of Emax	150 & 200
Safe load limit (EL) & Breaking load(Ed)	% of Emax	150 & 200
Protection class according to EN 60 529 (IEC 529)		IP67
Material :Measuring element		Alloy steel Stainless Steel
Material :Measuring element		Alloy steel Stainless Steel

Maximum capacity (Emax)	kg kg	250	300	500	800	1000
Min. load cell verification inter(vmin)	mm	0.05	0.1	0.1	0.2	0.2
Maximum platform size	mm		600*500
Deflection at Emax (snom)			< 0.5
Weight(G),appr.ox	kg		1 .8
cable diameter: Ø5mm Length	m		3
Mounting:Cylindrical head			10M-10.0(1T~1.5T), M12-10.9(2T~2.5T)
Tightening torque	N.m		1T-1.5T:68N.m, 2T-2.5T: 100N.m
