Ss304 Tension And Compression Load Cell 5-50kg

Name: Ss304 Tension And Compression Load Cell 550kg
Brand: Innovation
Price: 1 USD

Brand Name : Innovation

Model Number : INFS-021

Place of Origin : China

MOQ : 10pcs

Payment Terms : L/C, D/P, T/T, Western Union

Supply Ability : 1000pcs per month

Packaging Details : carton

Rated capacities(Emax) : 5~50kg

Recommended Excitation : 2.5~5V

Material : Stainless Steel

Contact Now

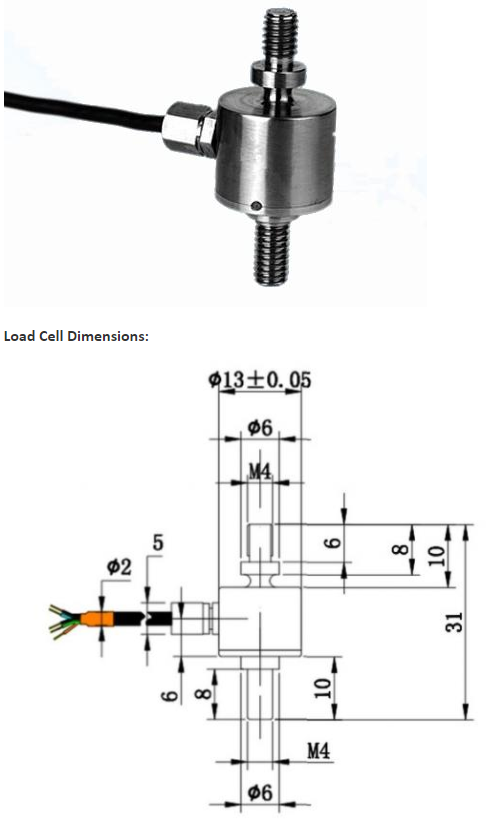

INFS-021 Tension And Compression Force Sencor mini Load Cell

5~50kg Screw Tension And Compression Mini Load Cell Stainless Steel in small space installation

INFS-021 Screw Tension and Compression Force Sencor Load Cell

Capacity: 5~50kg

Force measurement in small space installation,such as feeling tester for keyboard switch, compression force measurement for hot and cold lamination machine, and grasping force measurement for robotic hands.

Ss304 Tension And Compression Load Cell 5-50kg

Capacity	5-50kg	Material	Stainless Steel
Rated Output	1.0-1.5 mV/V	Output Impedance	350±3Ω
Zero Balance	±2%F.S.	Insulation	≥5000MΩ/100VDC
Non-linearity	1.0-5%F.S.	Recommended Excitation	2.5-5V
Hysteresis	1.0%F.S.	Maximum Excitation	10V
Repeatability	1.0%F.S.	Compensated Temp Range	-10~60ºC
(30)Creep (30min)	0.1%F.S.	Operating Temp Range	-20~80ºC
Temp Effect on Output	0.1%F.S./10ºC	Safe Load Limit	120%
Temp Effect on Zero	0.1%F.S./10ºC	Ultimate Load Limit	150%
Input Impedance	350±5Ω	Cable Size	φ(2-3)x 3m
Wire Connection	Ex + : Red; Ex - : Black; Sig + : Green; Sig - : White
